Shambhala Additional Information





These are the main fuel tanks, black iron, with sight glasses to show exact amount of fuel available.









These are the ball valves for fuel distribution. Under them you can see the condition of the hull







Racor fuel filter and Algae-X fuel conditioner. Once again you can see the hull just under the filters.

The engine exhaust is shown on the right, storage basket is at the bottom.







Another picture of the bilge just behind the engine. The large metal piece on the right is an anchor.

The belt and wood piece are part of the shaft brake.







Close up just at the turn of the bilge. On left is lubricator for stuffing box. Top left is electric fuel pump.

Top right is second Racor Fuel Filter.











The main shaft, shaft brake and storage for large Danforth Anchor. Bilge underneath all.







Engine and transmission, new oil coolers and hoses. Fuel tank selector switches. Bottom is covered exhaust.









Recently rebuilt fuel injectors. New water hoses seen at bottom. New exhaust pipes.









New exhaust flange and covers.

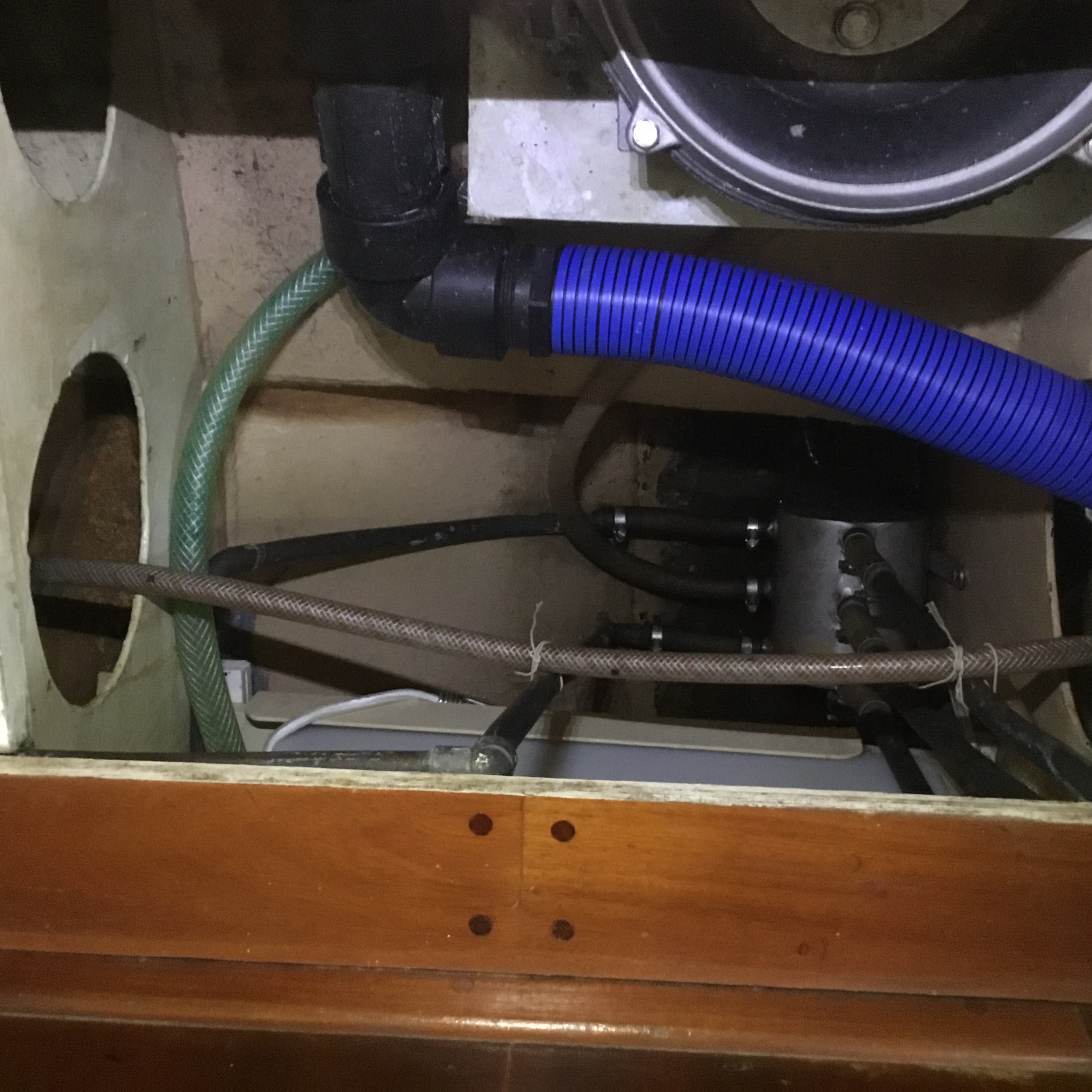

Hull by the deepest part of the bilge. Blue hose is the pick-up for manual bilge pump.







Looking down into main deep bilge. Black hose is for the air conditioning/cooling water.

Middle left is main bilge pump, next is manual bilge pump pick-up.







Top is Edson Manual Bilge pump and hose. Below on the right is the fresh water accumulator tank.

The deepest part of the bilge is just to the right of the right hand frame seen here.







Floors removed in galley for access to bilge





Floors removed in main salon for access to bilge.



Below are samples of the electrical and systems diagrams.
